Product Overview
Our multi-media filter housing offers a robust solution for large-scale water treatment.
Constructed from SUS304 or SUS316L, it operates at up to 0.6 MPa and supports diverse filtration
media—ensuring efficient removal of turbidity, sediments, and other contaminants.
Multi-Media Filter Housing – High-Capacity Water Treatment
Product Overview

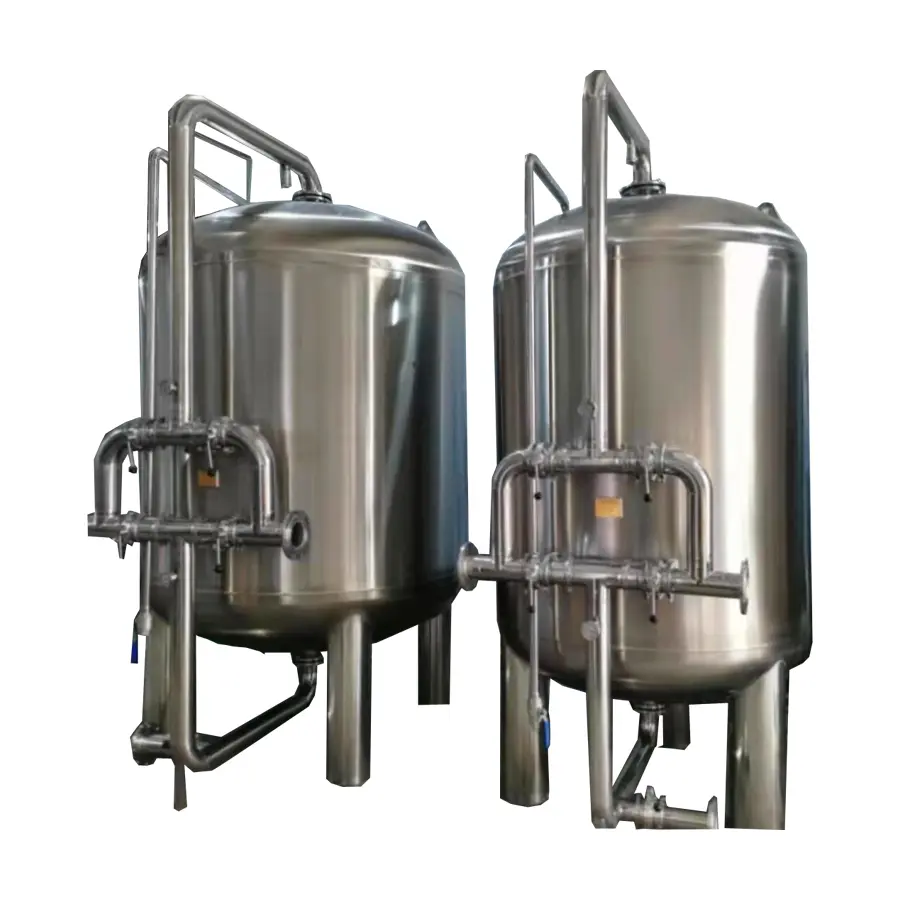

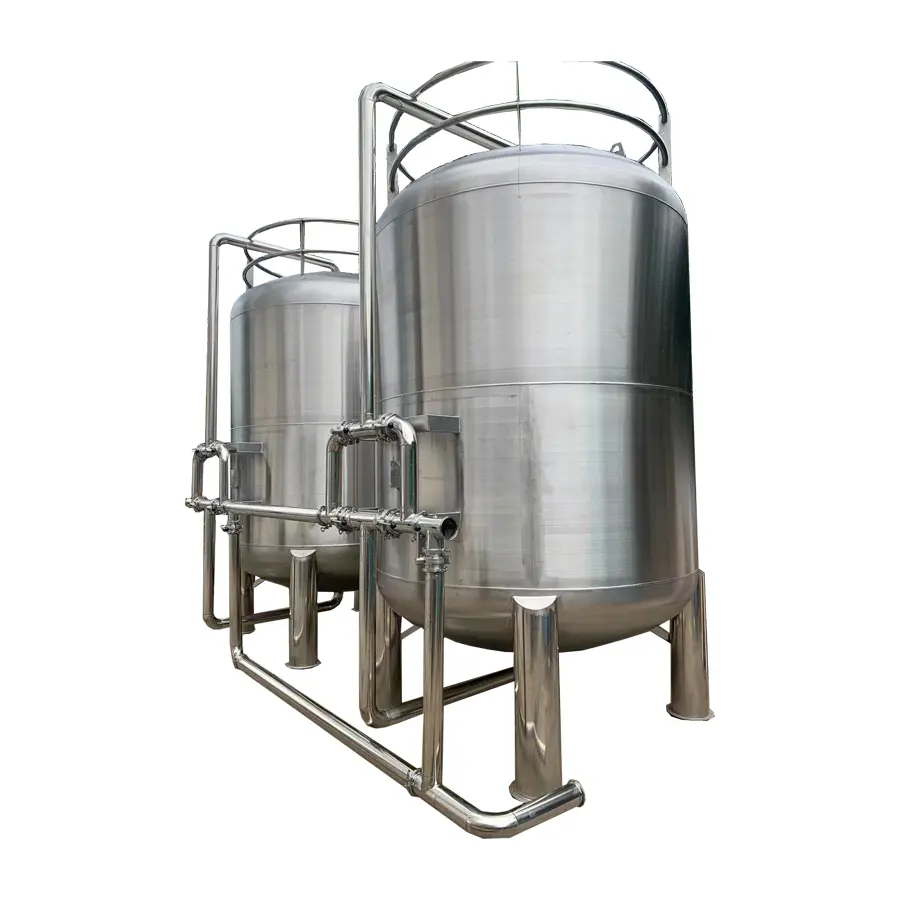

The Multi-Media Filter Housing is engineered for municipal, industrial, and commercial
water treatment processes that require reliable and efficient filtration. Built using
SUS304/SUS316L stainless steel, it supports various layered media—such as quartz sand, activated
carbon, and anthracite—to effectively remove particles, turbidity, organics, and unpleasant
odors. Operating pressure up to 0.6 MPa ensures consistent performance in large-scale systems.
- Material: SUS304 / SUS316L stainless steel
- Working Pressure: 0.6 MPa
- Surface Treatment: Glass or matte polish, sanitary welds
- Inlet/Outlet: Thread, flange, or sanitary quick connection
Key Features & Benefits
- Layered Media Flexibility: Accommodates multiple media layers for broader contaminant removal.
- High Flow Capacity: Ideal for extensive water treatment applications, from municipal to heavy industrial use.
- Durable Construction: Stainless steel body ensures corrosion resistance, prolonged service life, and easy sanitation.
- Stable Operation: Rated at 0.6 MPa, tested for leak-proof integrity and structural reliability.
Material & Structural Integrity
- Stainless Steel Shell: Corrosion-resistant SUS304 or SUS316L for food-grade or potable water compliance.
- Multi-Layer Media Bed: Allows customized media stacking (sand, anthracite, etc.) to target diverse contaminants.
- Surface Finish: Available in gloss or matte finish, with sanitary welds minimizing biofilm formation.
Quality & Assembly Control
- Pressure-tested up to 0.6 MPa, with ≥4x safety margin for burst pressure.
- Dimensional checks ensure accurate nozzle alignment and internal media space.
- Complies with relevant NSF/CE/ISO9001 standards for global water treatment projects.
Product Parameter
General Specifications
- Material: SUS304 / SUS316L stainless steel
- Working Pressure: 0.6 MPa
- Surface finish: glass or matte polish, sanitary welds
- Inlet/Outlet: thread, flange, or sanitary connection
Technical Parameter
| Model | Diameter (mm) | Filtration Flow (m³/h) | Effective Height (mm) | Housing Thickness (mm) | Inlet/Outlet Port |
|---|---|---|---|---|---|
| STK-0259-1700 | ∅259 | 2.0-2.4 | 1700 | 2.0 | DN25 |
| STK-0300-1900 | ∅300 | 3.0-4.0 | 1900 | 2.5 | DN32 |
| STK-0359-1900 | ∅359 | 4.0-5.0 | 1900 | 3.0 | DN40 |
| STK-0400-2100 | ∅400 | 5.0-6.0 | 2100 | 3.0 | DN40 |
| STK-0459-2300 | ∅459 | 6.0-7.0 | 2300 | 3.5 | DN50 |
| STK-0500-2400 | ∅500 | 7.0-8.0 | 2400 | 3.5 | DN50 |
Applicable Industry
The Multi-Media Filter Housing is ideal for comprehensive water treatment solutions, including:
- Municipal Water Supply: Removal of sediments, turbidity, and organics in city water treatment.
- Industrial Processes: Cooling water circulation, boiler feedwater pretreatment, CIP systems.
- Food & Beverage Production: Ensuring high-quality process water for beverages, dairies, breweries.
- Commercial & Hospitality: Large-scale filtration in hotels, resorts, and office complexes.
