Product Overview

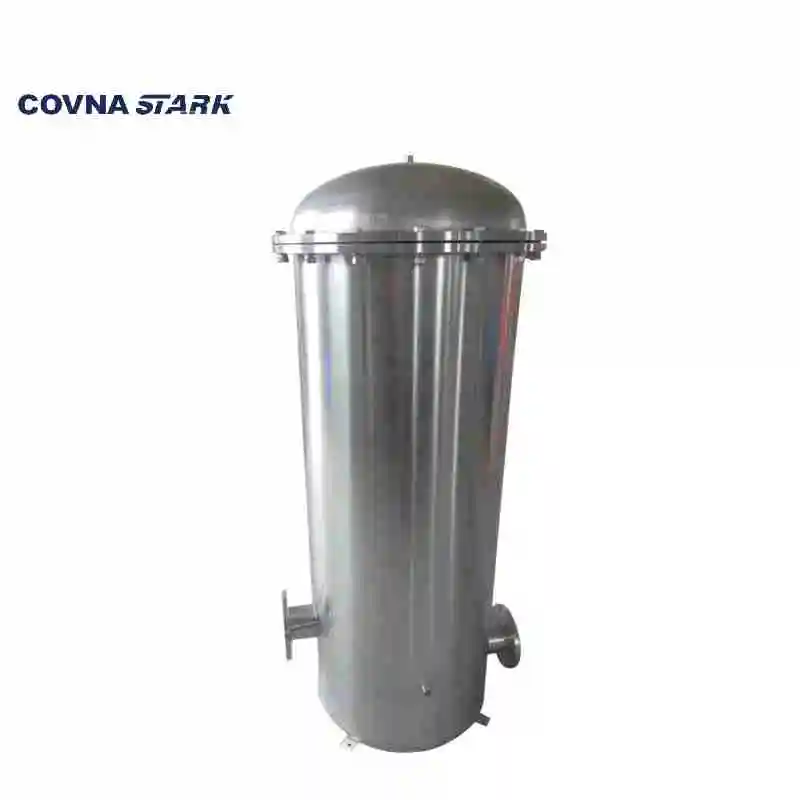

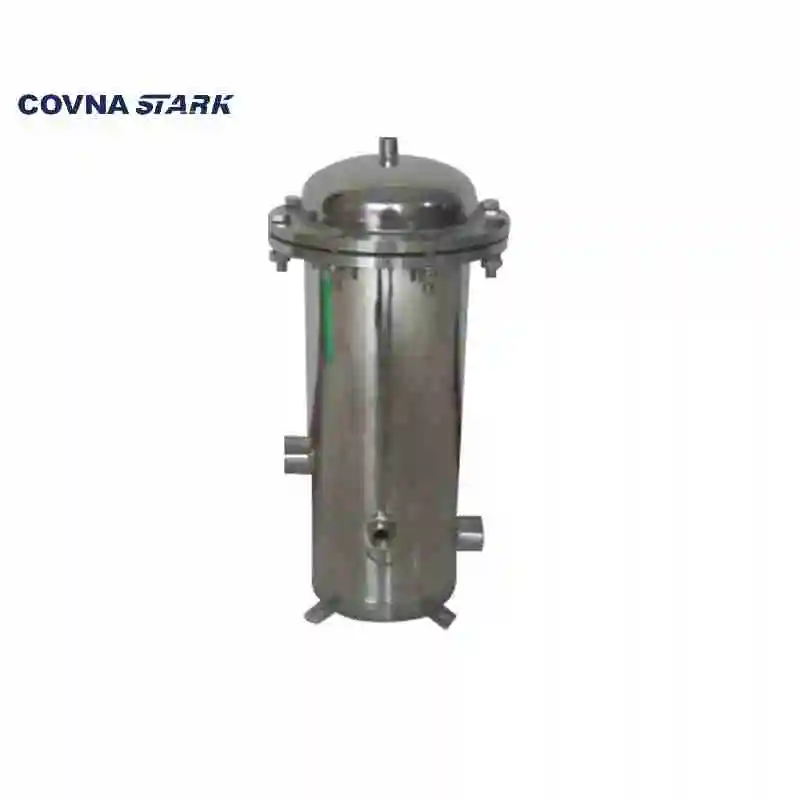

Our flanged precision filter delivers reliable, high-efficiency liquid filtration
for sanitary and industrial processes. Built from SUS304 or SUS316L stainless steel,
it ensures easy maintenance and quick cartridge replacement.
Product Overview
Our flanged precision filter delivers reliable, high-efficiency liquid filtration
for sanitary and industrial processes. Built from SUS304 or SUS316L stainless steel,
it ensures easy maintenance and quick cartridge replacement.
Flanged Precision Filter – Reliable & Efficient Filtration
Product Overview
Designed for robust performance in food, pharmaceutical, and industrial water treatment,
our Flanged Precision Filter combines high-grade SUS304/SUS316L construction
with a flat-bottom, single-fixed design. Its flange connection simplifies integration
into existing pipelines, while the hygienic finish options (glass or matte) ensure
minimal residue and easy cleaning.
- Material: SUS304 / SUS316L
- Working Pressure: 0.7 MPa
- Design: Flat bottom, single fixed, flange connection
- Surface Finish: Glass or matte polish
Key Features & Benefits
- Flange Connection: Ensures a secure, leak-proof seal and simplifies pipeline integration.
- Hygienic Design: Smooth interior welds and optional mirror polish reduce contamination risks.

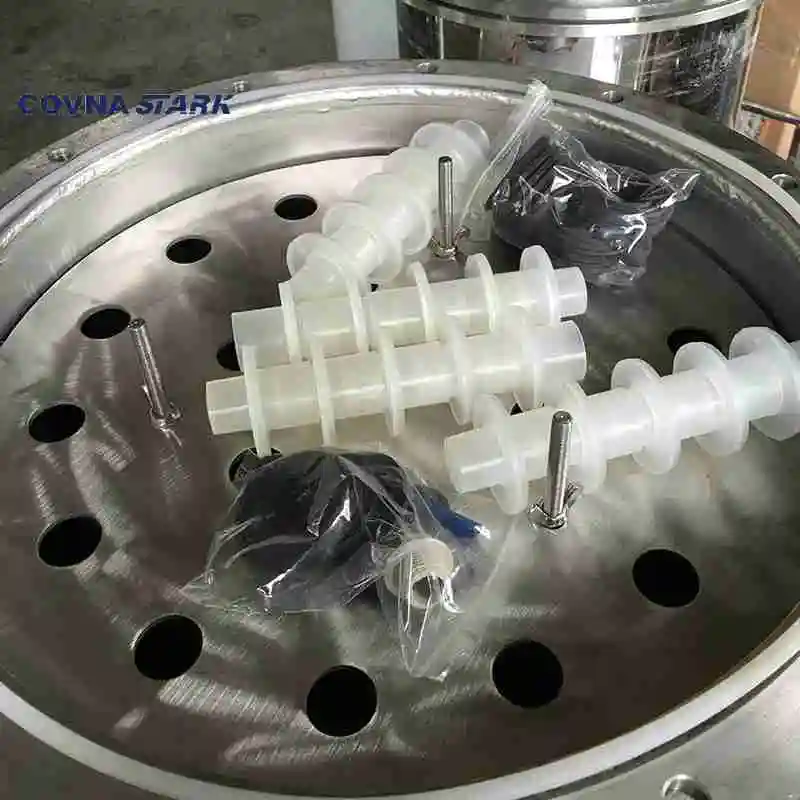

- Easy Cartridge Change: Top-access design streamlines filter core replacement, saving time.
- Durable Construction: Operates reliably at up to 0.7 MPa in demanding industrial settings.
Material Structure & Reinforcement
- Stainless Steel Body: Fabricated from SUS304/SUS316L for corrosion resistance and longevity.
- Flat Bottom: Single-layer pressure design ensures stable operation and easy draining.
- Surface Finish: Choose between glass or matte polish to suit hygienic or aesthetic requirements.
Quality & Assembly Control
- Pressure-tested to meet 0.7 MPa working conditions with a ≥4x burst margin.
- Dimensional checks ensure precise flange alignment and thread calibration.
- Adheres to NSF, CE, and ISO9001 quality standards for global market acceptance.
Product Parameter
General Specifications
- Material: SUS304 / SUS316L
- Working Pressure: 0.7 MPa
- Flat bottom, flange-type, single fixed design
- Surface finish: glass or matte
Technical Parameter
| Model | Diameter (mm) | Filter Core No. | Flow Reference (m³/h) | Housing Thickness (mm) | Effective Height (mm) | Inlet/Outlet |
|---|---|---|---|---|---|---|
| STK-7 | 219 | 3 | 2.0 | 2.0 | 1100 | 1.5" |
| STK-8 | 273 | 5 | 4.0 | 2.0 | 1300 | 2" |
| STK-9 | 325 | 7 | 6.0 | 3.0 | 1500 | 2" |
| STK-10 | 377 | 10 | 8.0 | 3.0 | 1700 | 2.5" |
| STK-12 | 426 | 12 | 10.0 | 3.0 | 1900 | 2.5" |
| STK-15 | 480 | 15 | 12.0 | 3.0 | 2100 | 2.5" |
| STK-20 | 540 | 20 | 15.0 | 3.5 | 2300 | 3" |
| STK-30 | 630 | 30 | 20.0 | 3.5 | 2500 | 3" |
Applicable Industry
The Flanged Precision Filter suits diverse applications requiring secure flange connections and sanitary design:
- Food & Beverage: Juice, syrup, dairy product filtration, and CIP solution handling.
- Pharmaceutical & Biotech: Final filtration for WFI (Water for Injection) and other sterile processes.
- Industrial Water Treatment: Pre-filtration in RO systems, cooling tower water, and process water lines.
- Chemical Processing: Clarification of solvents, acids, and alkalis under controlled pressure.
